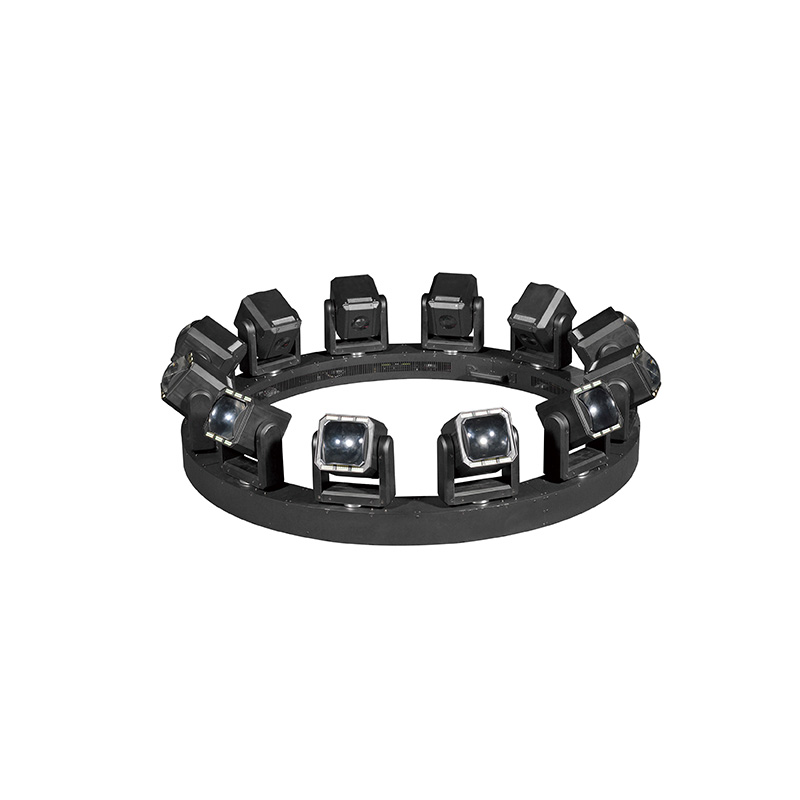

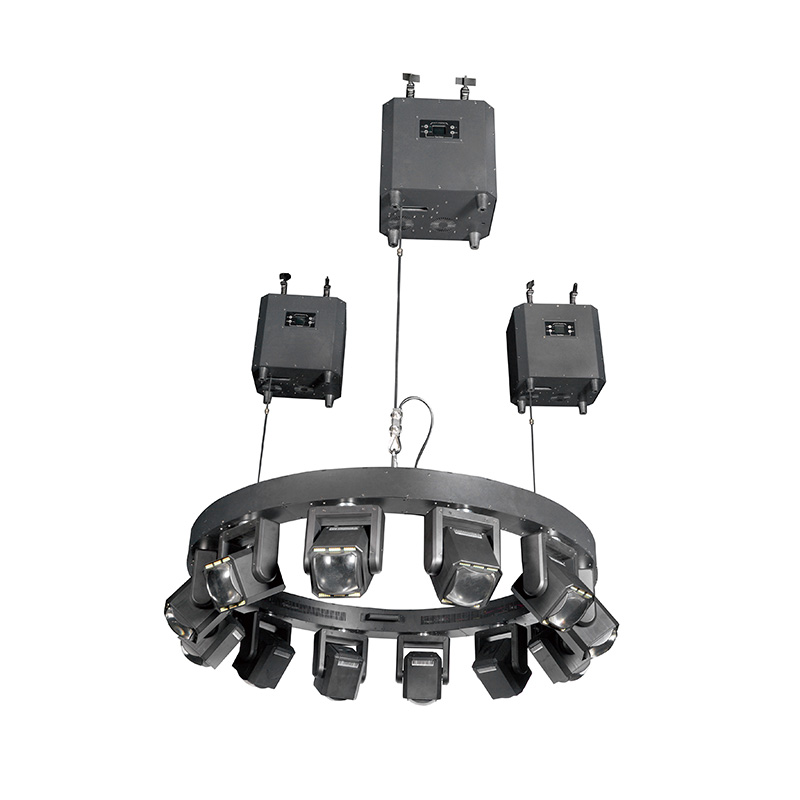

This 800W All-in-One Automated Lighting System combines a powerful 12*80W LED ring light with 864 auxiliary LEDs and three integrated motorized lifts, offering a 2° beam, 6m vertical movement, and full individual pixel control for groundbreaking stage automation.
Product Configuration
3 Lifts + 1 Light
Machine Parameters
Voltage: AC90V-240V, 50/60Hz
Power: 800W
RDM: YES
Independent addressing for light and hoist
Environment Temperature: 0℃ to 40℃
Protection: Physical braking, electronic protection
Installation Method: Vertical suspension
Net Weight: 99.5KG
Light Parameters
Light Source: 12*80W imported RGBW LEDs
Peripheral Auxiliary Light: 432*3W Warm White LEDs + 432*3W White LEDs
Beam Angle: 2°
Scan: Pan/Tilt 360°, 16-bit precision scanning, auto-correction for misalignment
Pixel Control: Single LED can be controlled individually
Control Channels: 22/90/130CH
Light Size: Outer diameter 1200mm / Inner diameter 1000mm
Net Weight: 39.5KG
Lifting Host Parameters
Power: 400W*3
Kinetic Lifting Host: 3 units
Single Lifting Host Load Capacity: 10KG
Lifting Stroke: 6 meters
Fastest Speed: 0.5M/s
Control Mode: DMX-512
Control Channels: 4CH
Lifting Host Size: 321*251*324mm
Net Weight: 20KG*3
User Manual
Power Cable
XLR Cable
Omega
Flightcase (Optional)
