A motorized 750W LED ring with 6m of vertical movement and pixel control, creating dynamic aerial effects for any stage.
Products Configuration：
Product Configuration: 3 Lifts + 1 Halo Light
Voltage: AC 90V-240V, 50/60Hz
IP Rating: IP20
Environment Temperature: -10℃ to 50℃
Protection: Physical braking, electronic protection
Installation Method: Vertical suspension
Net Weight: 82KG
Halo Light Parameters:
Power: 750W
Light Source: 36*40W imported RGBW LEDs
Beam Angle: 2.5°
Pixel Control: Single LED can be controlled individually
Halo Light Dimension: Outer diameter 120cm / Inner diameter 100cm
Net Weight: 20KG
Lifting Host Parameters:
Power: 400W*3
Kinetic Lifting Host: 3 units
Single Lifting Host Load Capacity: 10KG
Lifting Stroke: 6 meters
Fastest Speed: 0.4M/s
Control Mode: DMX-512
Control Channels: 4CH/9CH/144CH
Load-bearing Cable Diameter: 7mm
Synchronization Error: Less than 6mm
Net Weight: 20KG*3
User Manual
Power Cable
XLR Cable
Omega
Flightcase (Optional)
![36*40W Lifting Halo Light]( "36*40W Lifting Halo Light")
36*40W Lifting Halo LightBR-L3640Q
A motorized 750W LED ring with 6m of vertical movement and pixel control, creating dynamic aerial effects for any stage.![42*40W Lifting Triangle Beam Light]( "42*40W Lifting Triangle Beam Light")

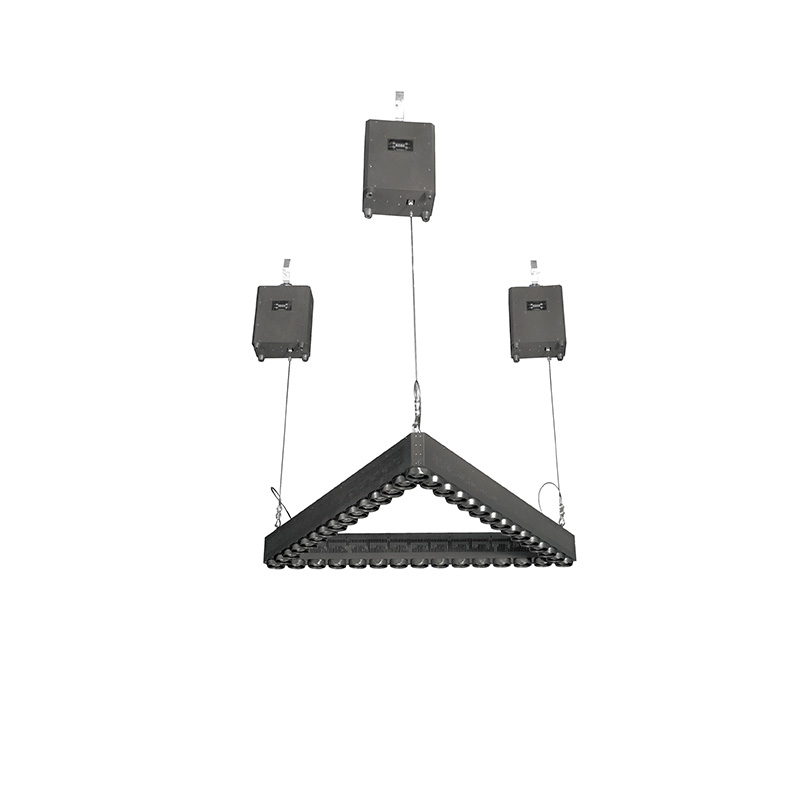

42*40W Lifting Triangle Beam LightBR-L4240Q
The 400W Integrated Lifting System merges a high-intensity 42*40W LEDs with three motorized lifts, featuring individual pixel control, a 3-meter vertical stroke, and unified DMX addressing.![12*80W Lifting Infinite Rotating Beam Light]( "12*80W Lifting Infinite Rotating Beam Light")

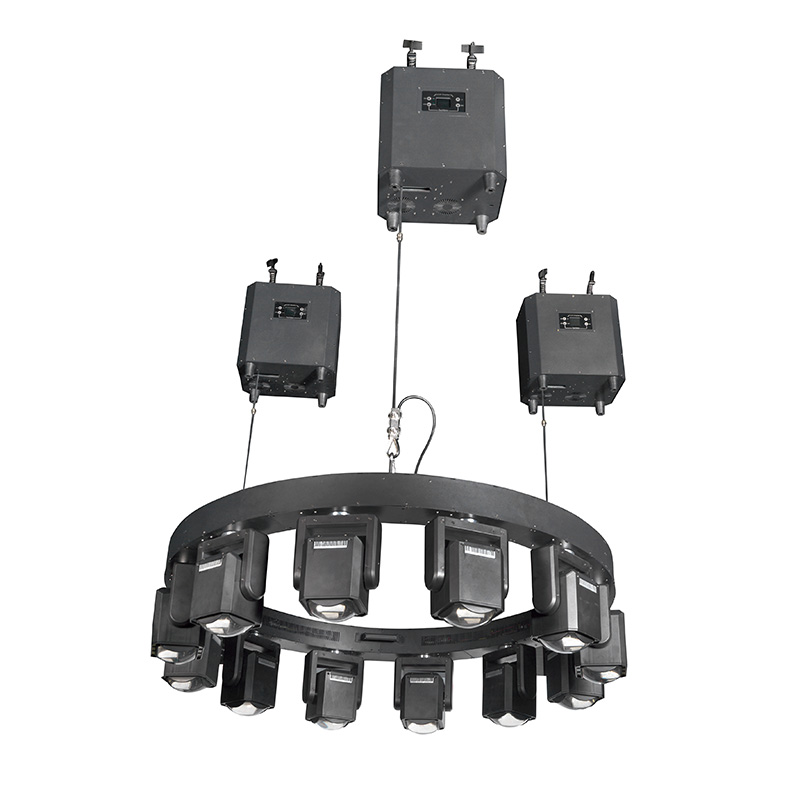

12*80W Lifting Infinite Rotating Beam LightBR-L1280Q
